This guide covers implementing rate limits on Qovery services through NGINX customization. Rate limiting helps protect services from abuse. While third-party solutions like Cloudflare are recommended for filtering traffic before it reaches workloads, this tutorial demonstrates cluster-level implementation.
Changing NGINX snippets configuration is an advanced feature and can lead to misconfiguration. Please be careful when changing these settings as it might break the whole NGINX configuration.

​
Prerequisites

  • Application running on a Qovery managed cluster
  • Basic understanding of NGINX rate limiting

​
Understanding NGINX Rate Limiting

NGINX rate limiting protects your services by controlling the rate of requests. For detailed information, see NGINX’s official documentation on rate limiting.

​
Initial Setup

​
Configure Test Service

We’ll use jmalloc/echo-server Docker image for testing:
  • Image: jmalloc/echo-server
  • Port: 80

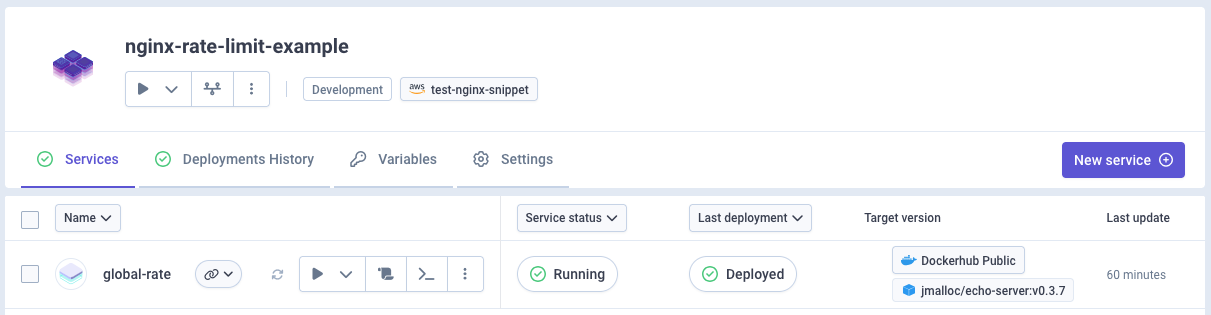

Service initial setup

​
Configure NGINX Replicas

Rate limits apply per NGINX instance. For demonstration, set replicas to 1 (not recommended for production):
  1. Go to Cluster Settings → Advanced Settings
  2. Find nginx.controller.replicas
  3. Set value to 1

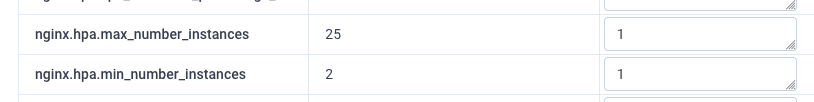

Set NGINX replicas
Without rate limits: 100 req/sec × 500 requests = 100% success rate (all HTTP 200 responses)

​
Global Rate Limit Implementation

​
Declare at Cluster Level

Configure nginx.controller.http_snippet:
limit_req_zone "$server_name" zone=global:10m rate=10r/s;
Components:
  • $server_name: Rate limit key (can use $http_x_forwarded_for for IP-based limits)
  • zone=global:10m: Zone name with 10MB memory allocation
  • rate=10r/s: 10 requests per second threshold

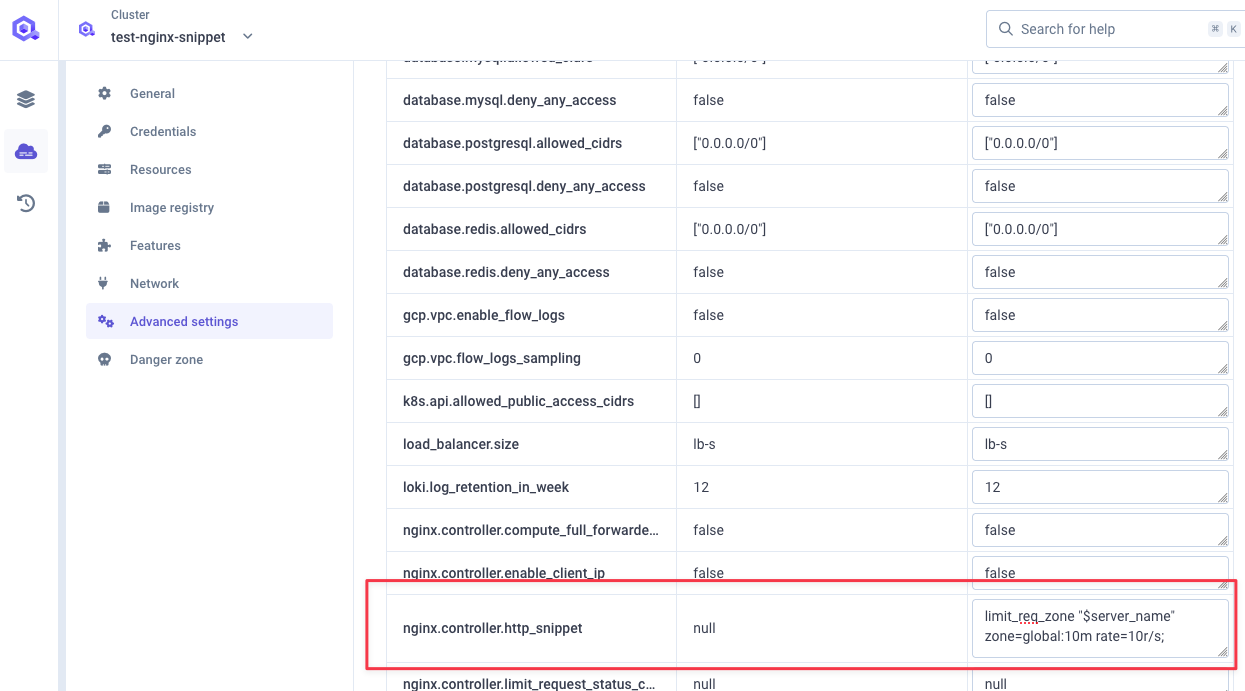

Set global rate in http snippet

​
Apply Rate Limit

Configure nginx.controller.server_snippet:
location / {
    limit_req zone=global;
}

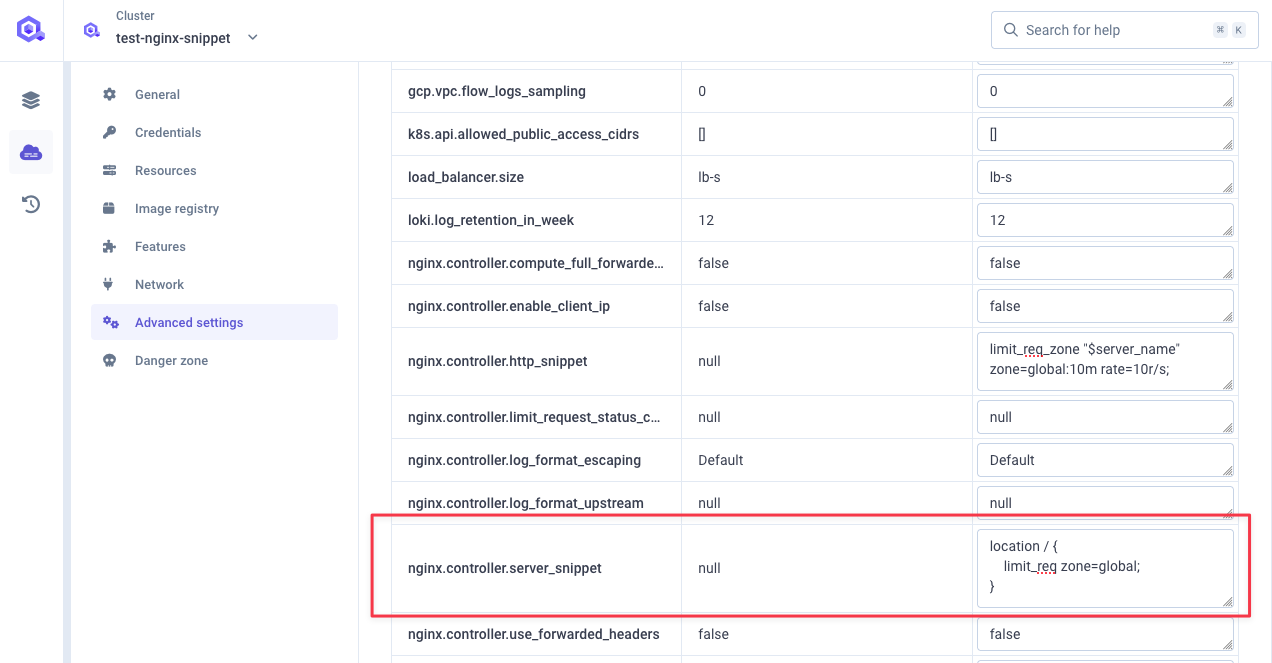

Apply global rate in server snippet

​
Deploy Changes

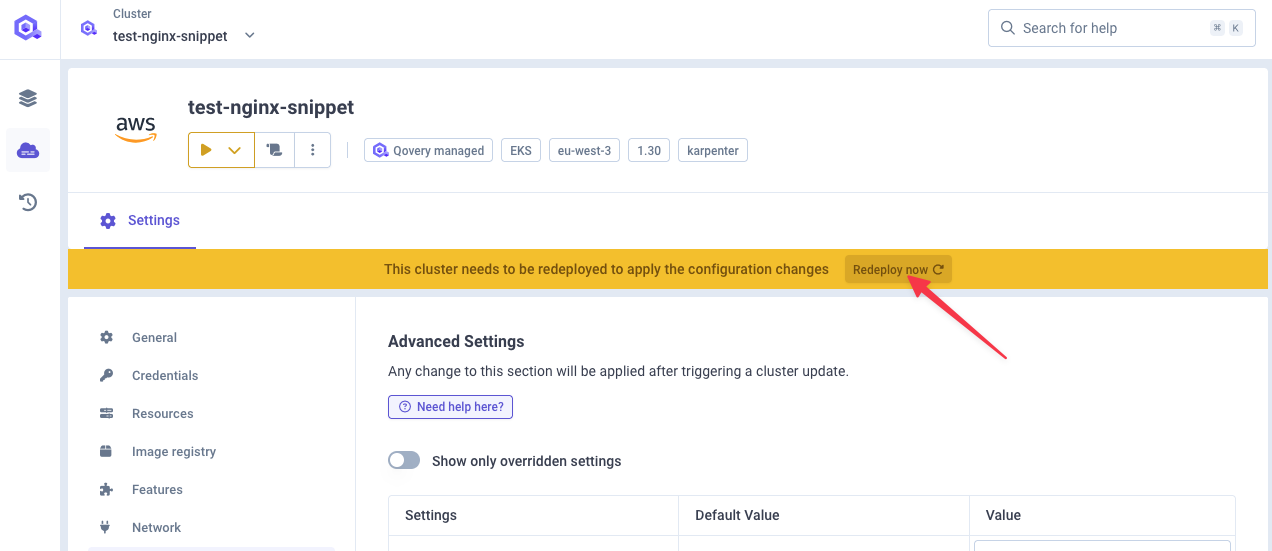

Deploy cluster changes

​
Enhancement with Burst

Adding burst=20 nodelay; permits 20-request bursts without delays:
location / {
    limit_req zone=global burst=20 nodelay;
}

​
Test Results

Load test: 100 req/sec for 500 total requests Result:
  • 452 HTTP 503 rejections
  • 48 HTTP 200 acceptances (~9.6 req/sec)

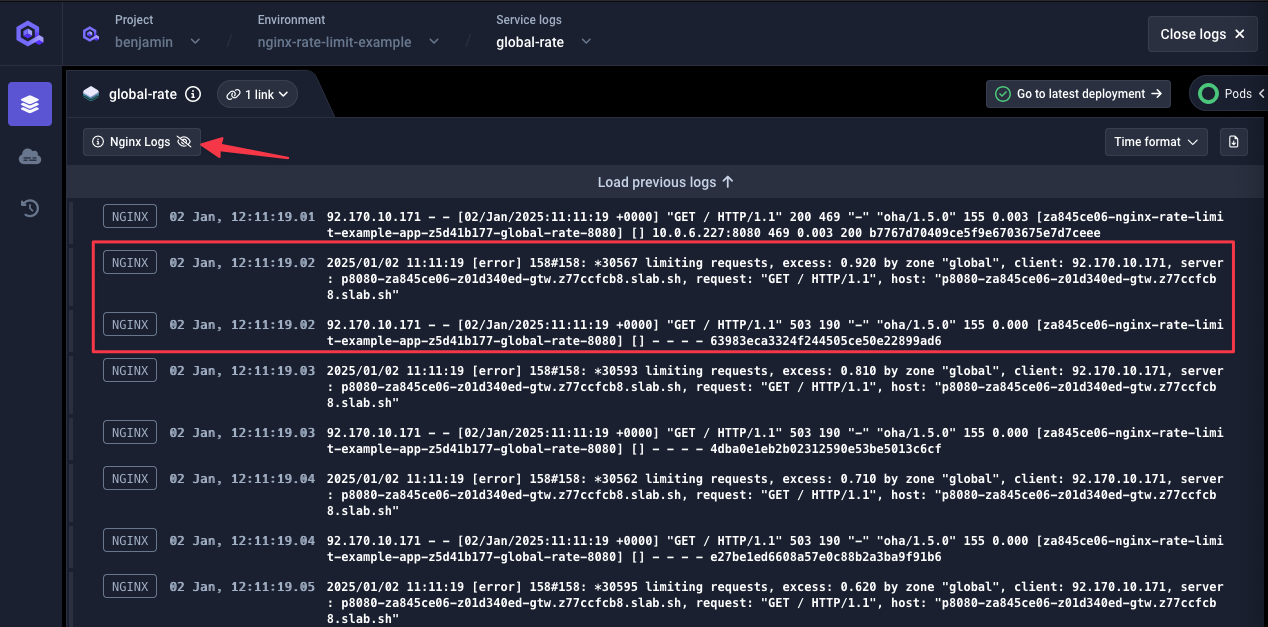

Global rate limit logs

​
Service-Level Rate Limit

Configure rate limiting at the service level using advanced settings: Configuration Settings:
  • network.ingress.nginx_limit_rps: Rate in requests/second
  • network.ingress.nginx_limit_rpm: Rate in requests/minute
  • network.ingress.nginx_limit_burst_multiplier: Burst multiplier (default: 5)

​
Example: 10 Requests/Minute with 2× Burst

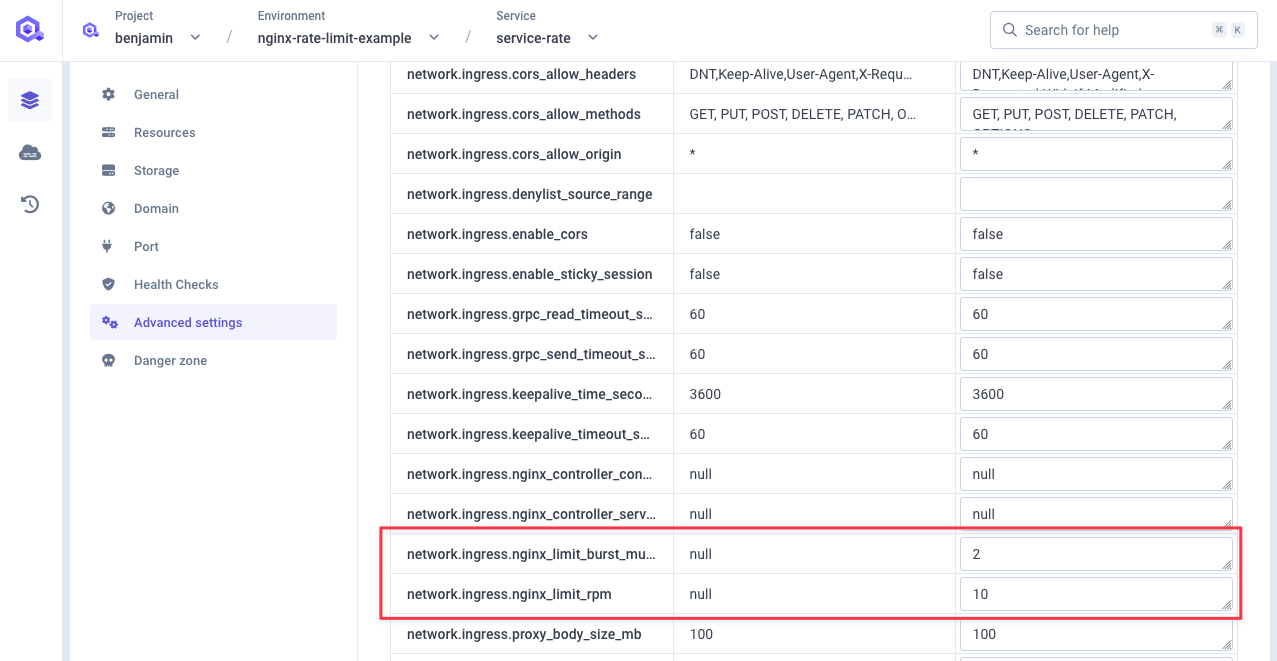

Service-level rate limit
When both RPM and RPS are set, both rate limits will be enforced simultaneously. Traffic will be restricted based on whichever limit is hit first.

​
Deploy Service

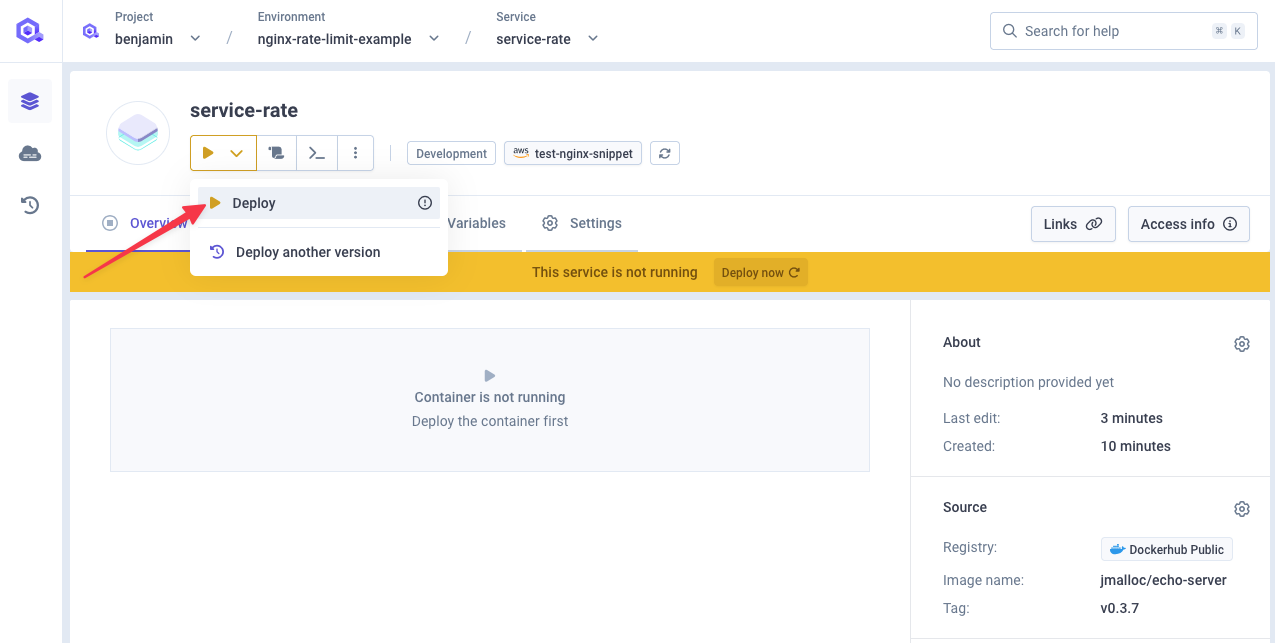

Deploy service with rate limit

​
Test Results

  • 479 HTTP 503 rejections
  • 21 HTTP 200 acceptances

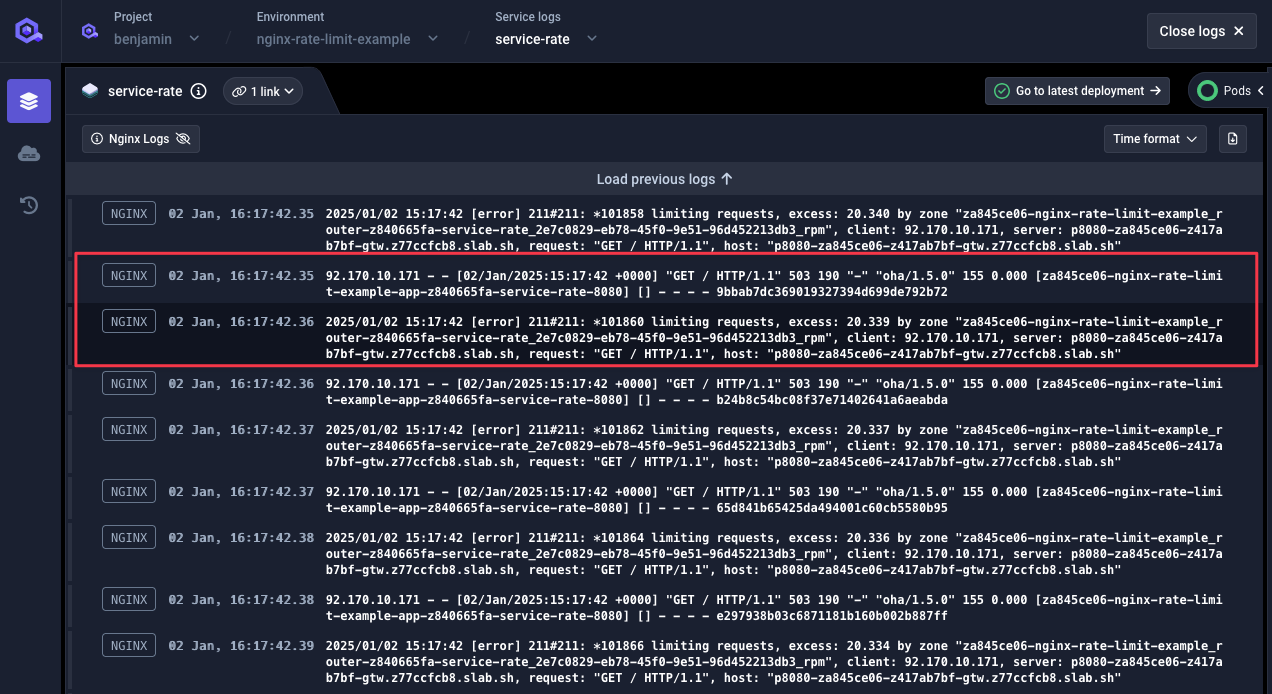

Service rate limit logs

​
Custom Header-Based Rate Limiting

Implement rate limiting based on custom HTTP headers.

​
Cluster Configuration

Configure nginx.controller.http_snippet:
map $http_x_qovery_api_key $limit_key {
    default $http_x_qovery_api_key;
    "" "anonymous";
}

limit_req_zone $limit_key zone=qovery_api_limit:10m rate=5r/s;

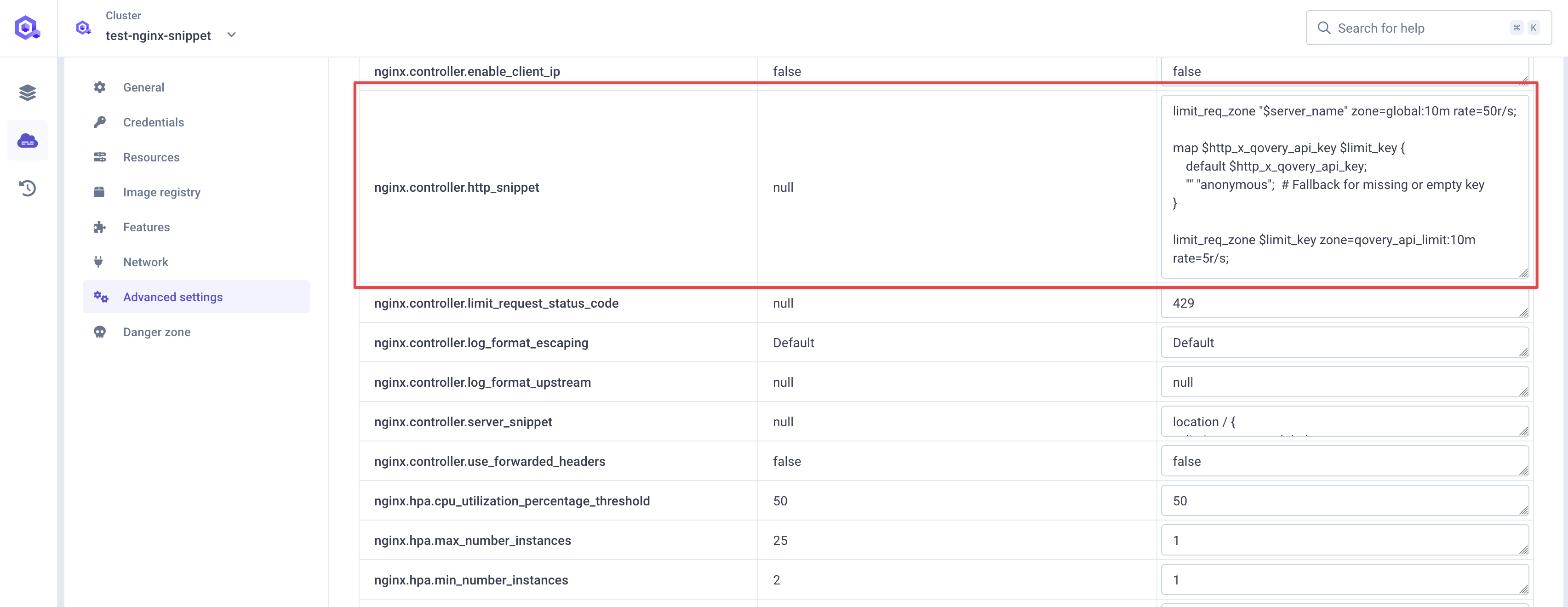

Custom header rate limit declaration
Details: Maps HTTP header values to rate limit keys; missing headers default to “anonymous” designation.

​
Service Configuration

Configure network.ingress.nginx_controller_configuration_snippet:
limit_req zone=qovery_api_limit burst=2 nodelay;

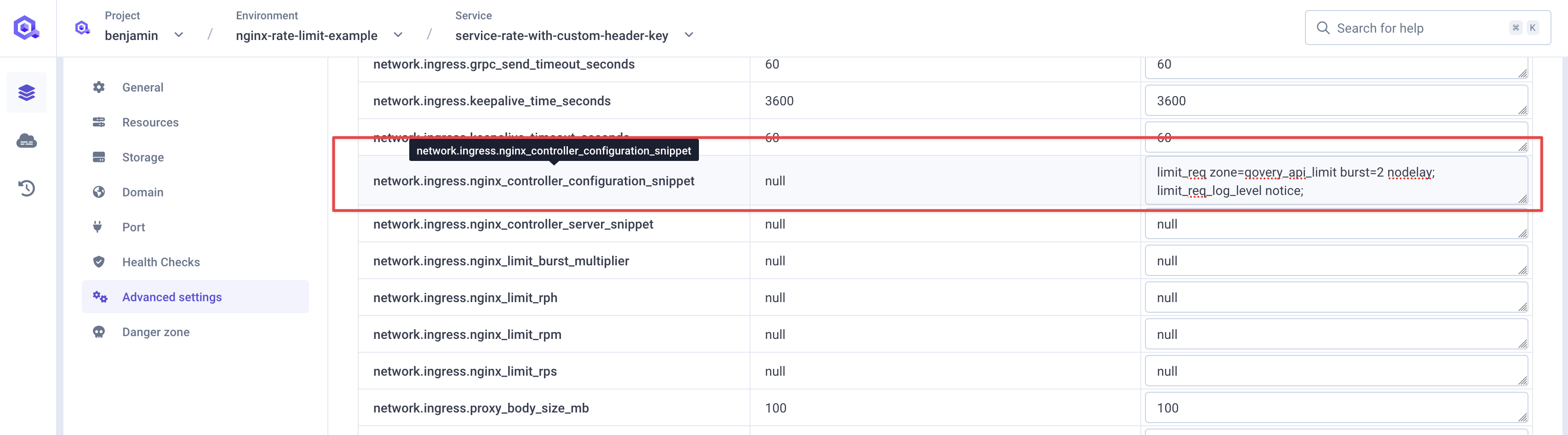

Apply custom header rate limit
Burst Parameter Explanation:
  • burst=2: Permits 2 extra requests beyond rate limit during short bursts
  • nodelay: Disables request queuing; excess requests rejected immediately

​
Deploy and Test

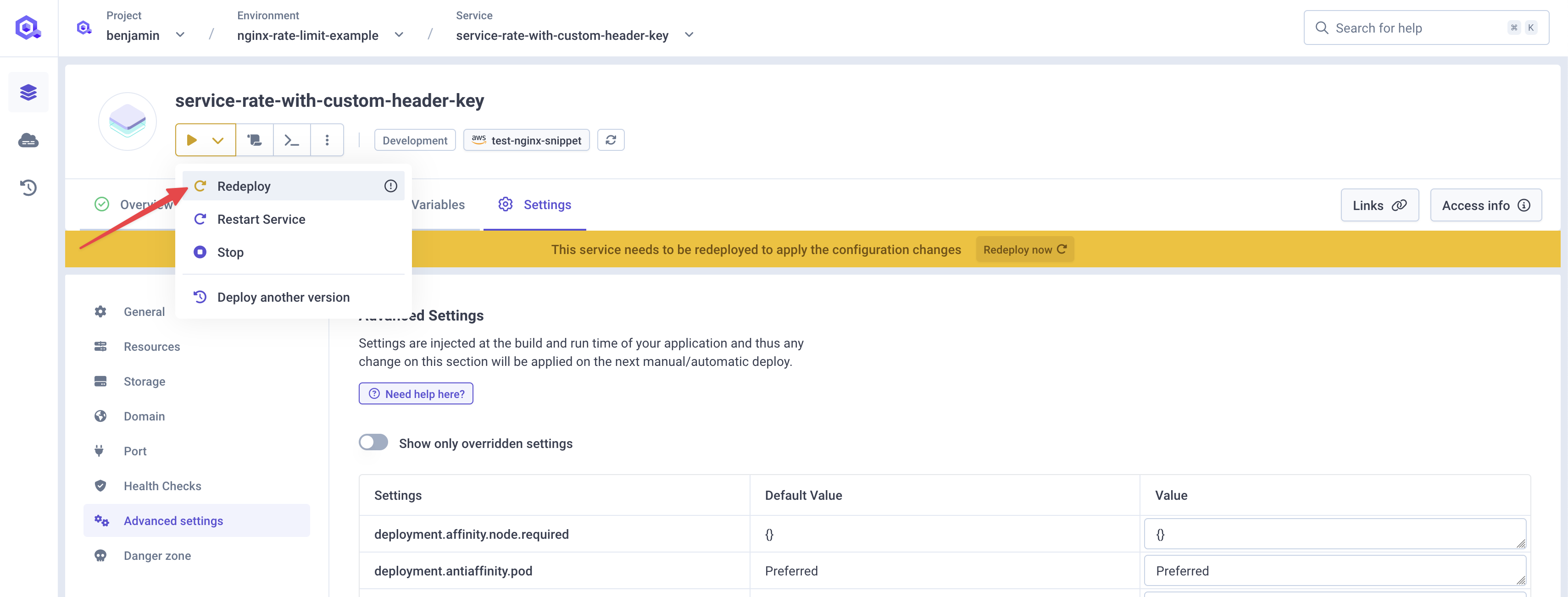

Deploy with custom header rate limit
Test Command:
oha -q 100 -n 500 -H "X-QOVERY-API-KEY: benjamin"
Result:
  • 473 HTTP 503 rejections
  • 27 HTTP 200 acceptances (~5.4 req/sec with burst)

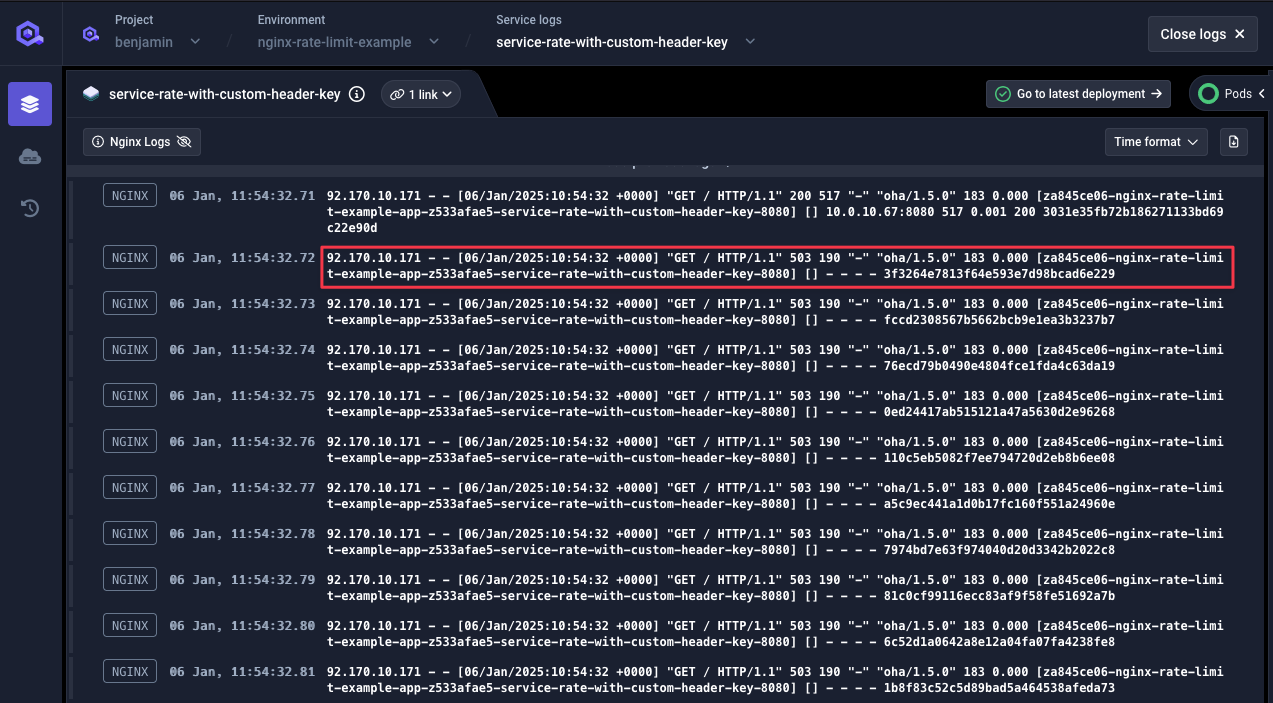

Service logs with custom header

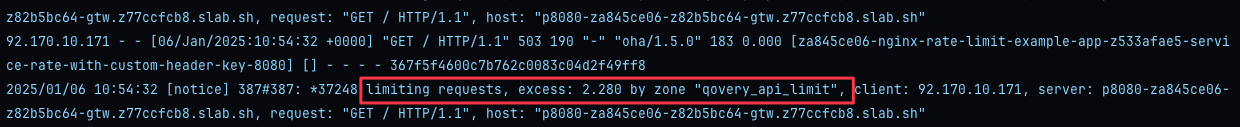

NGINX logs with custom header

​
Additional Configuration

​
Custom HTTP Status Code

Configure nginx.controller.limit_request_status_code:
  • Default: HTTP 503
  • Alternative: HTTP 429 (commonly used for rate limiting)

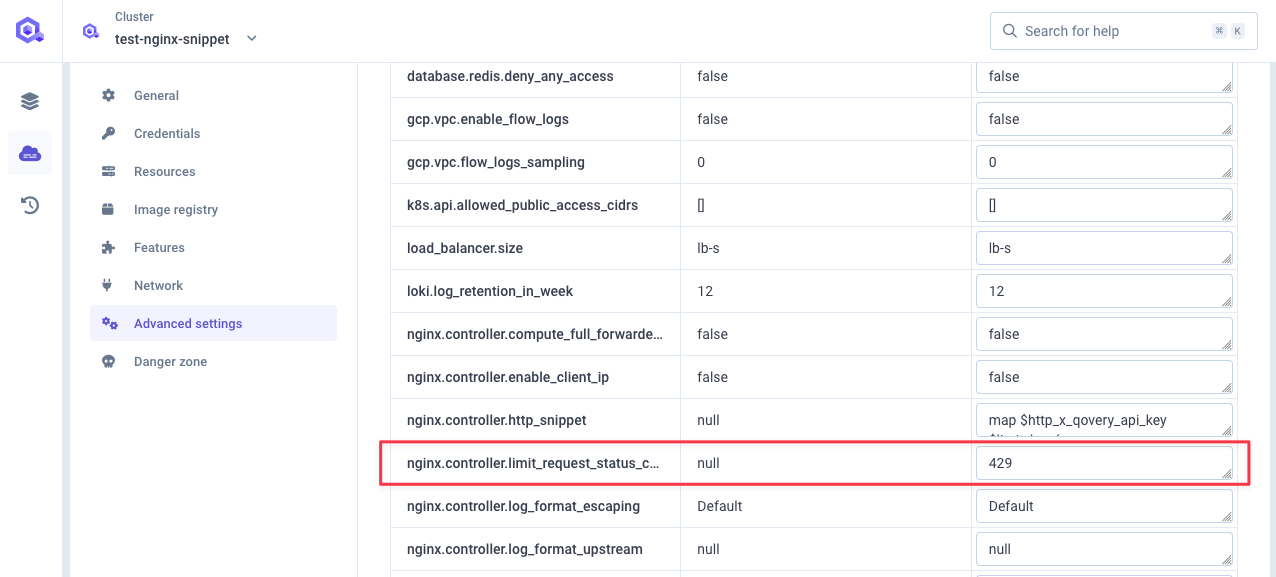

Custom HTTP status code
Test results show HTTP 429 responses:

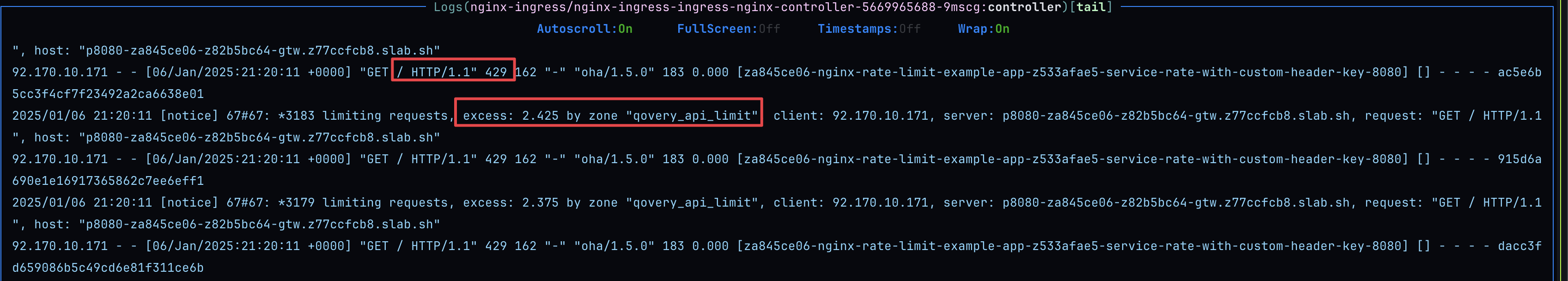

HTTP 429 response logs

​
Connection Limits

Configure network.ingress.nginx_limit_connections at service level to limit concurrent connections from single IP addresses.

​
Summary

Applied at cluster level, affects all services. Best for protecting the entire cluster from abuse.
Applied per service using nginx_limit_rps or nginx_limit_rpm. Best for protecting individual services.
Applied based on custom HTTP headers. Best for API key-based rate limiting and multi-tenant applications.
Limits concurrent connections per IP. Best for preventing connection exhaustion attacks.
